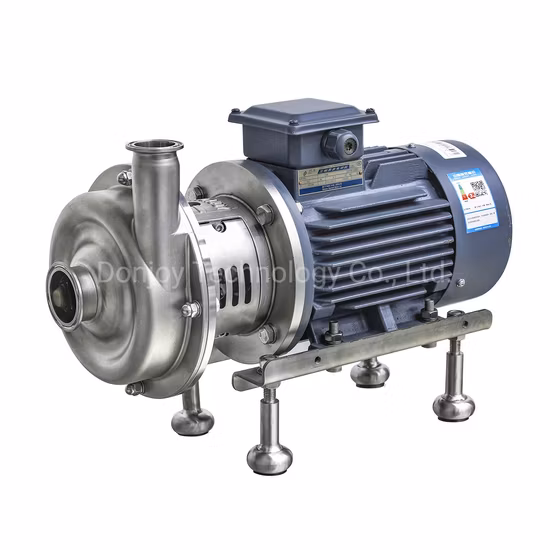

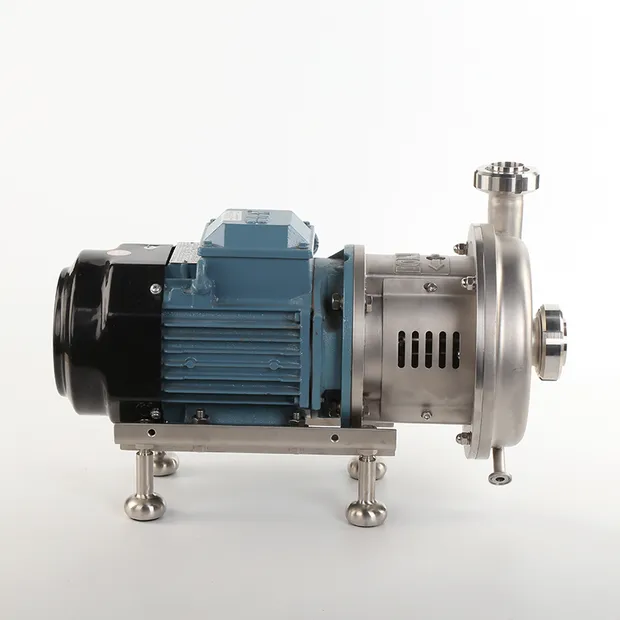

High Quality Stainless Steel Single Stage Multistage Centrifugal Pump Water Pump Self-Priming Pump

Basic Info

Model NO.	KLX
Working Pressure	Low Pressure Pump
Influent Type of Impeller	Single Suction Pump
Position of Pump Shaft	Horizontal Pump
Pump Casing Combined	Horizontal Split Pumps
Mounting Height	Since Irrigation Centrifugal Pumps
Impeller	Open
Usage	Pump, Pumps
Flow Rate	1t/H - 140t/H
Pump Type	Centrifugal Type
Operation	by Open Impeller
Media	Similar to Water
Viscosity	Less Than 500cps
Transport Package	Plywood Case
Specification	1.5t~100t Lift: 14m~70m
Trademark	Donjoy-(OEM will be also welcome)
Origin	Wenzhou, Zhejiang, China
HS Code	8413709990
Production Capacity	100PCS/Month

Product Description

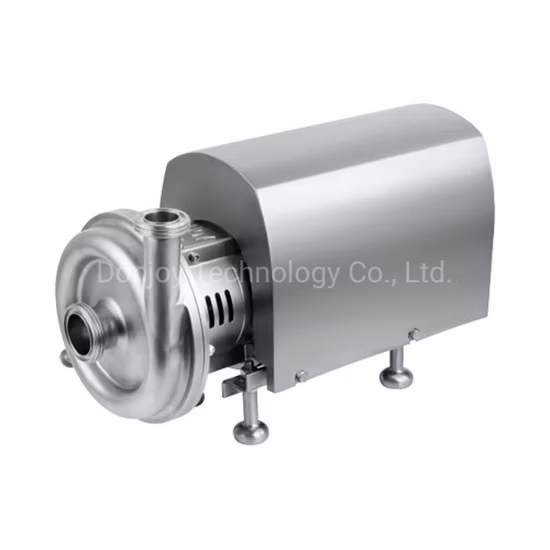

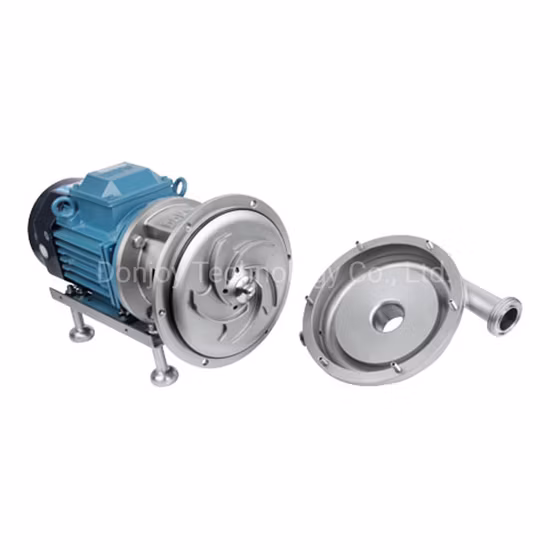

Stainless steel Impeller Centrifugal Pump with ABB Motor for DairyThe pump is foraged and with stainless steel motor cover. With sanitary and cost-effective design,it is ideal for dairy, beverage, food processing, pharmaceutical and fine chemical industries.Impeller TypeOpen impeller and Close impellerParameterMax. Flow: 150 m3/hMax. Lift: 70H(m)Max. Pessure: 7bar/99PSIMax. Temperature: 150C/248. FMax. Speed: 3600 min-1ConfigurationMechanical seal in C/SIC and SIC/SIC single or double Gaskets (standard): EPDM (FDA approval)Connections: Clamped, male, flanged, DIN, SMS, RJT, IDFMotor: 2900, 1450, 3600 rev. /min., 50HZ, 60HZParts in contact with media: AISI 316L/AISI304 (Other parts AISI 304)Surface TreatmentInside surface finishing: Ra≤ 0.8 umOutside surface finishing: Sandblast or Mirror polishedModel Selection

Model	20 T/24 M	30 T/24 M	40 T/36 M
Flow	20 T	30 T	40 T
Total Head	24 m	24 m	36 m
Suction Stroke	5-6 m	5-6 m	5-6 m
Impeller Diameter	192 mm	192 mm	215 mm
Inlet/Outlet Diameter	63.5/63.5 mm	76.5/63.5 mm	76/76 mm
Motor Type	M2QA132S4A	M2QA132M4A	M2QA160SM4A
Power	5.5kw(380V/50HZ )	7.5kw(380V/50HZ )	11kw(380V/50HZ )
Speed	1420 r/min	1420 r/min	1420 r/min
Dimensions(L*W*H)	760*320*475	760*320*475	1006*360*600
Machine Weight	110 kg	116kg	168kg
